CARTNING MACHINE YMH-102B
- HOME
- CARTNING MACHINE YMH-102B
Cleanliness and maintainability are enhanced by adopting under open frame structure.

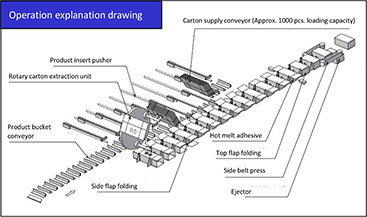

Horizontal continuous motion cartoning machine with rotary carton extraction mechanism.
A series of processes from carton erection, loading to sealing is implemented in continuous motion.
Multifuntionality
It will help design production system with high certainity by setting IJP and various inspection systems and responding flexibly to various options.
High Functionaliy
With an adoption of servo motor in main drive, more certain motion is made possible by optimal control.
Easy size change
Steering wheel adjustment is equipped in the main part to make size change easier and to enhance reproducibility.
※Self-feeding system to bucket conveyor is available as option.
Specification
| Model | YMH-102B |
|---|---|
| Capacity | 200cpm(MAX240cpm) |
| Electric Power | 3 Phase 200V 8kW |
| Compressed Air | 0.49MPa 150Nℓ/min |
| Carton Type | Coated Cardboard(250g～450g/m2) |
| Carton Forming Part | Rotary structure with 3 heads |
| Carton Magazine | Belt conveyor supply (Approx. 1,000 pieces accommodation) |
| Product Transport Part | Combination of plunger and cam |
| Carton Closing Method | Hot melt |
| Ejector | Air kicker system |
| Driving Unit | Servo motor |
| Operation Panel | Touch panel |
| Size Change | Steering wheel adjustment and slide adjustment (with digital indicator) |
| Safety Cover | PET full guard cover (with safety switch) |

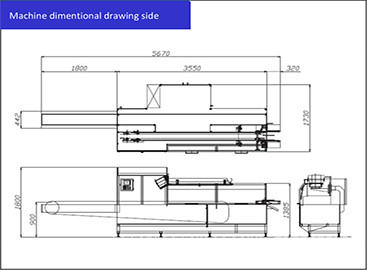

| Machine Size | L=5,670mm W=1,730mm H=1,385mm |
| Pass Line | 900mm |
| Machine Weight | Approx. 2,500kg |
Options
□Product transfer equipment
□Tuck-in sealing
□Various stamping devices
□Leaflet insert feeder
□Extention of product transfer bucket
□Special carton size
□Various inspection devices
