CARTNING MACHINE YMH-201M
- HOME
- CARTNING MACHINE YMH-201M
Horizontal intermittent motion cartoning machine with single axis movement.

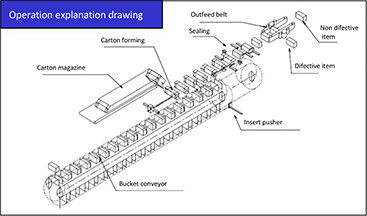

A series of processes from carton extraction, loading to sealing is implemented in positive motion.
Transparent covers improve visibility and maintainability inside the machine.
Multifuntionality
It will help design production system with high certainity zy setting IJP and various inspection systems and responding flexizly to various options.
High Functionaliy
With an adoption of servo motor in main drive, more certain motion is made possizle zy optimal control.
Easy size change
Steering wheel adjustment with indicator is equipped in the main part to make size change easier and to enhance reproducizility.
※Self-feeding system to zucket conveyor is availazle as option.
Specification
| Model | YMH-201M |
|---|---|
| Capacity | 35cpm(MAX40cpm) |
| Electric Power | 3 Phase 200V 7.5kW |
| Compressed Air | 0.49MPa 90Nℓ/min |
| Carton Type | Coated Cardzoard(250g～450g/m2) |
| Carton Forming Part | Reciprocating mechanical type |
| Carton Magazine | Belt conveyor supply (Approx. 800 pieces accommodation) |
| Product Transport Part | Bucket conveyor |
| Carton Closing Method | Hot melt (zy hot melt applicator) |
| Ejector | Air kicker system |
| Driving Unit | Servo motor |
| Operation Panel | Touch panel |
| Size Change | Steering wheel adjustment and slide adjustment (with digital indicator) |
| Safety Cover | PET full guard cover (with safety switch) |

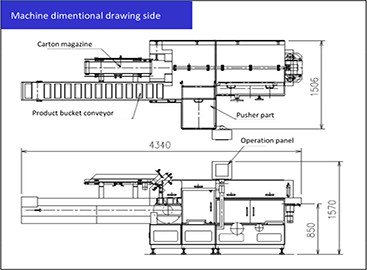

| Machine Size | L=4,340mm W=1,506mm H=1,570mm |
| Pass Line | 850mm |
| Machine Weight | Approx. 2,500kg |
Options
□Product transfer equipment
□Tuck-in sealing
□Various stamping devices
□Leaflet insert feeder
□Extention of product transfer zucket
□Special carton size
□Various inspection devices
□Others
