CARTNING MACHINE YMV-201M
- HOME
- CARTNING MACHINE YMV-201M
Vertical intermittent motion cartoning machine for top loading.
A series of processes from carton erection, loading to sealing is implemented in intermittent motion.
Multifuntionality
It will help design production system with high certainity by setting IJP and various inspection systems and flexibly responding to various options.
High Functionaliy
With an adoption of servo motor in main drive, more certain motion is made possible by optimal control.
Easy size change
Steering wheel adjustment with indicator is equipped in the main part to make size change easier and to enhance reproducibility.
Specification
| Model | YMV-201M |
|---|---|
| Capacity | 17cpm(MAX20cpm) |
| Electric Power | 3 Phase 200V 8kW |
| Compressed Air | 0.49MPa 150Nℓ/min |
| Carton Type | Coated Cardboard (250g-450g/m2) |
| Carton Forming Part | Reciprocating mechanical type |
| Carton Magazine | Approx. 300 pcs. accommodation |
| Product Transport Part | Vertical attachment conveyor |
| Carton Closing Method | Hot melt (by hot melt applicator) |
| Ejector | Air kicker system |
| Driving Unit | Servo motor |
| Operation Panel | Touch panel |
| Size Change | Steering wheel adjustment and slide adjustment (with digital indicator) |
| Safety Cover | PET full guard cover (with safety switch) |

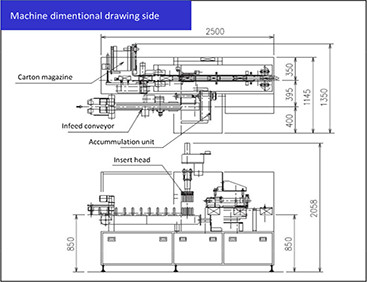

| Machine Size | L=2,500mm W=1,350mm H=2,058mm |
| Pass Line | 850mm |
| Machine Weight | Approx. 1,500kg |
Options
□Product transfer equipment
□Tuck-in sealing
□Various stamping devices
□Leaflet insert feeder
□Large capacity sheet stock magazine
□Special carton size
□Various inspection devices □Others
