WRAP-AROUND CASER YMW-310
- HOME
- WRAP-AROUND CASER YMW-310
Servo motor drive is adopted for carton extraction to ensure more positive carton supply. Also bucket conveyor of case conveyance part adopts servo motor drive to ensre more precise supply and to improve durability.
Simple opepation
By adoption of touch panel, navigation will be provided for operation status and trouble shooting.
High Functionaliy
Carton extraction part and case conveyance part are driven by servo motor to ensure simplicity as well as higher precise operation.
Easy size change
Steering wheel adjustment with indicator is equipped to make size change easier and to enhance reproducibility.
Specification
| Model | YMW-310 |
|---|---|
| Capacity | 17cpm |
| Electric Power | 3 Phase 200V 8kW |
| Compressed Air | 0.49MPa 450Nℓ/min |
| Carton Type | Blank carton for wrap-around type (A/F, B/F carton) |
| Carton Extraction Part | Crank structure |
| Carton Magazine | Approx. 150 pcs. accommodation |
| Case Conveyance Part | Bucket conveyor |
| Carton Closing Method | Hot melt (by hot melt applicator) |
| Driving Unit | AC Servo motor |
| Operation Panel | Touch panel |
| Size Change | Steering wheel adjustment and slide adjustment (with digital indicator) |
| Safety Cover | PET full guard cover (with safety switch) |

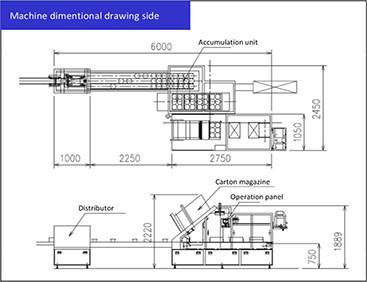

| Machine Size | L=2,750mm W=1,050mm H=2,220mm |
| Pass Line | 750mm |
| Machine Weight | Approx. 2,000kg |
Options
□various automatic accumulation supply devices
□inner seam flap
□Various stamping devices
□weight identifying device
□Special carton size
□Infeed conveyor and out feed conveyor
□automatic sheet supply device
□Others
