SEMI AUTOMATIC CASER YS-001
- HOME
- SEMI AUTOMATIC CASER YS-001

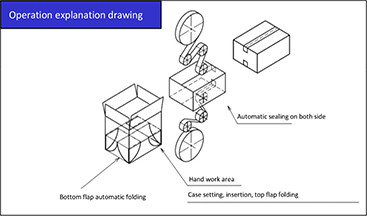

The semi automatic caser serves as both carton forming and carton sealing so that it is unnecessary to form a carton separately.
Compact design to save space.
Suitable to various carton sizes.
Multifunctionality
Space saving is made possible by integrating carton forming and carton sealing. Also it is unnecessary to form a carton separately. Reliability of taping unit is proven by a number of our achievement.
Easy size change
It is easy to change size with handles located on 3 positions.
High safety
Designed for safety of work
Various options
Various options are available such as special carton size etc.
Specification
| Model | YS-001 |
|---|---|
| Capacity | 12cpm(MAX) |
| Electric Power | 3 Phase 200V 500W |
| Compressed Air | 0.49MPa 200Nℓ/min |
| Carton Type | Carton A type A/F, B/F |
| Carton forming part on bottom side | Air cylinder drive |
| Carton transport part | Side belt conveyor |
| Sealing method | Taping unit Kraft or OPP tape |
| Size change | Steering wheel adjustment and slide adjustment (with digital indicator) |

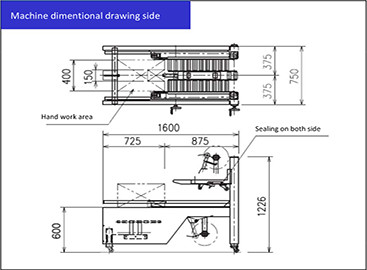

| Machine Size | L=2,680mm W=1,200mm H=1,570mm |
| Pass Line | 600mm |
| Machine Weight | Approx. 500kg |
Options
□Alarm for tape remaining
□Special carton size
□Various stamping devices
□size changer powered by electric
□Production counter
□requested painting color
□Others
